Category Archives: Guides

Homemade lens

Posted by on May 1, 2012 No comments

I’ve often thought about making my own lenses, but unfortunately I’m so bad at making things I’ve always avoided it (apart from making a pinhole “lens”). But this week I was fortunate enough to be left with a broken 35mm slide projector, a Braun Novamat 515 AF-I, to be specific. It had a Braun Color-Paxon multicoated 85mm f/2.8 lens, with the usual screw mount for projectors. What’s the worst that can happen to a broken projector?

Braun Novamat 515 AF-I

Canon L lenses(that’s the pro series) have a red ring around them to distinguish them. Perhaps if you don’t look too closely you might think I’ve got an expensive lens here. Red ring? 85mm? Yep, must be expensive.

Braun Color-Paxon MC 85mm f/2.8

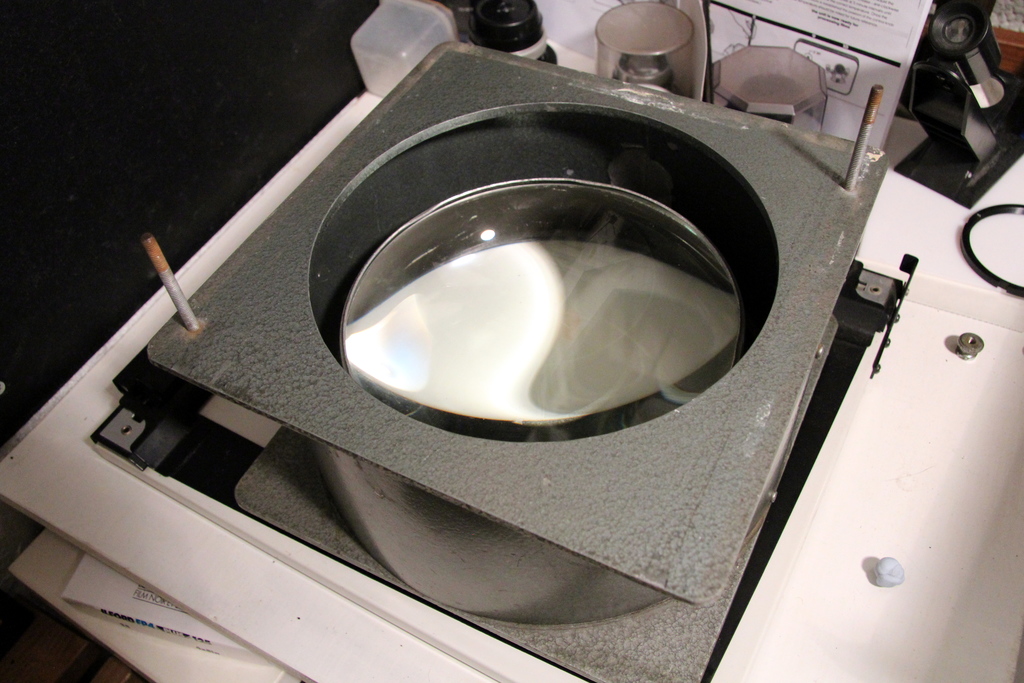

I dismantled the projector and removed the lens mount from inside it. “Removed” sounds so tidy… I had to use a hacksaw. Then I drilled out a Canon body cap, and glued the projector’s lens mount onto the body cap.

See, I told you I wasn’t good at making things. I believe that anything that can’t be made with a saw and a glue gun can’t be made at all :D

Canon EF mount for projector lenses

The lens simply screws into the barrel, and can easily be focused like any other manual-focus lens, although the steep thread means it’s hard to focus accurately.

I seem to have cocked up the focal-flange distance and the lens can’t quite focus to infinity. However, a quick zap with a file will allow the lens to slide further back into the barrel and will fix this. I’m not too bothered though – 85mm is traditionally used for headshots.

As the lens screws so far out of the barrel it has very good macro capability too.

Braun Color-Paxon MC 85mm f/2.8

Canon 600D with 85mm f/2.8

Crucially – how well does it work? Surprisingly well, actually. Unlike camera lenses, projector lenses usually don’t have a variable aperture. This lens is stuck at f/2.8 all the time. This gives narrow depth of fieldand can make it hard to get a sharp picture.

Perhaps more importantly, as this is a projector lens and not a camera lens it suffers from worse aberrations. Stopping down would probably help reduce them. Perhaps in the future I will make a set of interchangeable apertures out of black cardboard. I reckon this lens would look nice at f/5.6 or f/8.

The contrast of the lens is a little low, despite the multicoating. I think it would perform badly outdoors in sunlight, since it just isn’t designed for that. However, the front element is recessed in a sort of hood, which will help.

These photos have had the contrast boosted a little and the white balance fixed (I shot with auto white balance under ugly CFL lighting, combined with golden evening sunlight from the window).

In this photo of the mains plug, you can see how shallow the depth of field is, by how blurry the skirting board goes. But the lens is capable of sharp images – just look at the dots on the plug for my toothbrush.

Mains plug

In this picture of Mittens, the whiskers, eyebrows and hairs on her left ear are quite sharp. I could probably have focused more accurately given some time, but kittens never sit still for long. The black shapes in the background are cables hanging off my computer desk.

Mittens

And finally, this picture is of my jeans. Obviously when doing macro work, you need to stop down a lot to achieve decent depth of field, and that just isn’t possible with this lens. But it’s not too bad.

Jeans



Making a solar filter

Posted by on February 16, 2012 No comments

I wanted a solar filter for my camera, for safe observation and photography of the sun. Typically these filters have an optical density of OD 5.0, which for photographers is ND 100,000. This means that only 0.001% of light is allowed through the filter.

You can buy pre-made solar filters, but they are expensive and relatively hard to find. You can also buy solar film and then mount it onto your camera lens or telescope yourself, but it is relatively fragile. If it gets a scratch, you could potentially blind yourself. Crinkled foil could also spoil the image quality.

I wanted a solution that was effective, durable and wouldn’t break the bank. Fortunately, one of my friends works in a chemistry lab and has access to a really cool machine that can coat glass filters with various kinds of metal. (This is the same chap who has the frickin’ laser that I wrote about not long ago).

Choosing a donor filter

I needed a 72mm filter for the telephoto lens I planned to use. I bought two cheap UV filters, although plain glass blanks would have been equally good.

What’s important is that the glass can be removed from the frame. Cheap filters often have the glass glued into the frame. Semi-decent ones have the glass dropped into the outer ring, and then the inner retaining ring is screwed in to hold it. Usually these screw-mounted filters have a screw thread on each side of the filter so you can stack two or more on the same lens.

The filter in this picture is the wrong type, where the glass is glued into the metal frame.

Glued filter

And here’s a close up of the kind with a screw-in retaining ring inside. This makes disassembly really easy with a pair of screwdrivers (be careful!).

Filter with retaining ring

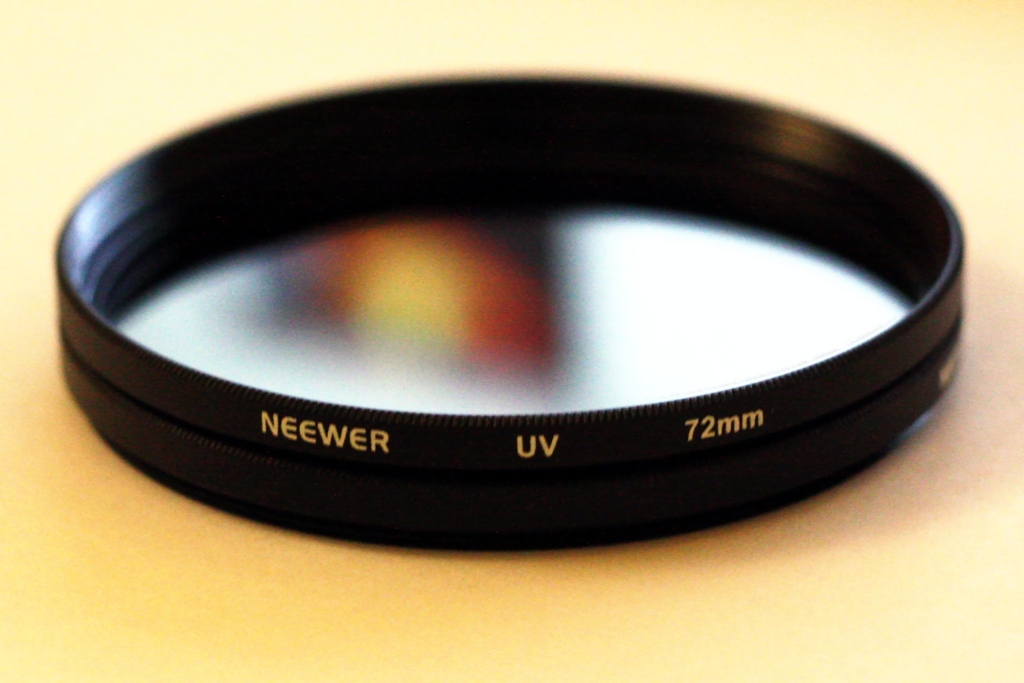

I bought two UV filters made by Neewer, who are a relatively well-respected budget filter maker. Ordering from China, I paid less than £2 for each filter.  It was then easy to remove the glass from the frame.

Coating

In order to achieve an optical density of approximately 5, you need a total metal coating thickness of around 80nm. Trouble is, these metal coatings are very easily scratched – a fingernail would easily remove them. So I decided to coat each of the two filters with 40nm of metal and assemble the filter with the two metal coatings sandwiched together between the two pieces of glass.

The coating process is interesting. It’s done by boiling your chosen metal using an electric filament until it becomes a gas. At this stage, it will float around and stick to everything. However, you have to do this in a sealed bell jar that contains a vacuum.

First I cleaned the filters using a jet of compressed air, followed by a wiping with butanol and acetone. Any dust or grease on the filters will prevent the coating from sticking properly.

Then with the clean filters placed on the coating platform, I loaded a filament made of tungsten, wound with nichrome wire, and placed the bell jar over the whole lot. The small lump to the upper-right of the filters is a thickness sensor.

With the equipment set up, I started pumping the air out of the chamber. There’s a conventional rotary pump that can get the pressure down to a thousandth of an atmosphere, but after that you have to use a diffusion pump. For the coating to work properly, you need a pressure of just 10-6 millibars – that’s a billionth of an atmosphere. This takes about 20 minutes.

When the pressure is low enough, the chamber is sealed, and we can turn the filament on to gently begin heating the nichrome. You can’t heat it too fast, or it will all melt and drip off the filament and be wasted.

When the nichrome starts to evaporate, we crank up the current in the filament to some 50 amps. Now the whole filament acts like a light bulb, and is too bright to look at. No photos of the filament in this state, I’m afraid. I was too busy shielding my eyes.

There’s an instrument on the desk that’s hooked up to the thickness sensor I mentioned earlier. This tells me how thick the coating is, in nanometres. Here the readout is showing almost 25nm, over halfway to my 40nm target. I didn’t time how long it took to build up 40nm but it was something like 20-30 minutes.

After a while we can once again look at the bell jar, since the inside of it is partially coated with metal and quite dim. You can see how the filters now appear to be mirrors.

When the thickness meter reckons we’ve got the right amount of metal on the glass surface, we turn off the filament and gently let the air back into the bell jar. Cautiously we remove the filters from the platform using gloves (because they are hot, and because we don’t want to get dust on them).

Assembly

Now it’s just a simple matter of placing the two filters with their coated faces together, and screwing them back into the metal filter mount. Try to avoid the two filters sliding or rotating against each other. If you have dust between them, it could easily cause a scratch. Scratching one of the coated surfaces isn’t a huge problem, but if you scratch both faces then you’ll get a pinhole which allows unfiltered sunlight through, and will do a pretty good job of zapping you in the eye.

The coating is not exposed to the outside world, so this filter is no more fragile than a normal filter. The outer glass surfaces are just regular UV filters and can be cleaned in the usual way.

I found that with two pieces of glass together in one filter frame, the thin retaining ring didn’t seem that secure, so I simply used the spare frame to hold the glass in place. This means my filter is twice as thick as a normal filter, but that’s no problem.

The finished filter

And here is the filter in situ, mounted on my Tokina RMC 400mm f/5.6.

The filter in place

Testing

Unfortunately as it’s winter, it hasn’t yet been daylight during any of my free time, so I haven’t been able to use this filter with the sun. However, by comparing photos of a lightbulb in my house with and without the filter, I was able to estimate the optical density.

Without the filter, I shot the lightbulb at ISO1600, f/5.6 and a shutter speed of 1/4000s. To achieve the same exposure with the filter (keeping the ISO and aperture the same) needed about 120 seconds. That’s 200,000 times more exposure.

  • Transmittance: 0.0005%
  • Neutral density: ND 200,000
  • Optical density: OD 5.3

Given that I was aiming for an OD of 5.0, I’m pleased with OD 5.3. If my measurements are correct, that will be totally safe for viewing by eye through the camera’s viewfinder. Anyone fancy a sweepstake? :D

Soon, I hope to be able to publish some pictures of the sun taken with this filter – obviously depending on there being sun during the day at the weekend while I’m free. Cross referencing my personal calendar with the forecast for Bristol, it might be a few weeks…

Building a home darkroom

Posted by on January 9, 2011 3 comments

I have worked with film for some time now. From day one I developed my own black & white film at home. This doesn’t take up too much room, so I was able to do it in the bathroom (which is completely internal, with no window).

More recently, I got into printing my negatives rather than just scanning them. For printing, you need more equipment, larger equipment, and a lot of space. Our tiny bathroom wasn’t big enough, so I converted my loft into a darkroom. Here’s how.

I used the space in my loft for my darkroom. It’s quite large, and partially boarded up. I added some more boards to increase the floorspace. Luckily the loft already had a pull-down ladder, so access was easy. You can also see the extension lead I added.

The ladder

For my main work area, I used a spare dining table with two chairs against one wall. There’s no other furniture up there, although I have some boxes to keep things in.

The darkroom

There’s a standing lamp with a 100W bulb which gives reasonable illumination in the work area. The switch is in easy reach of the chair for easy blackout. I also have a clock which ticks loudly, so I can time things in the dark.

The enlarger and lamp

In a couple of areas, the boards overhang joists without reaching the next joist, and so they are unsupported. I taped these areas, and the thin trapdoor, with hazard tape to remind me not to step on them. Luckily these areas are not in the main floor area.

Hazard tape

I also attached some kitchen cupboard handles to the inside of the trapdoor, to make it easier to open from inside. Don’t want to get trapped in the loft!

The trapdoor

There’s no running water, so I bought a jerry can with a tap. This stands on a higher level than the floor, and I put a large bowl underneath the tap. The jerry can holds ten litres, which is enough to last me for several darkroom sessions. I made sure the bowl holds at least ten litres, so it will never accidentally overflow. The paler tray has some small holes at one end, so I can wash prints under running water, while submerged.

The water tank

Being in the loft, with no insulation against the outside world, the temperature can get quite low if the sun isn’t shining. I don’t personally mind being cold, but the chemicals do. I have a fan heater to boost the temperature to an acceptable working range. There’s a thermometer hanging from one of the roof supports. However, I store the chemicals in the house so they keep close to working temperature.

You can also see the safelight in the background, with a choice of three colours.

My thermometer

Also hanging from the roof supports – a drying line for wet prints. This small one only holds three or four prints, but there’s plenty more room to hang more photos.

The drying line

Of course, I’d love a larger workspace, one without roof supports, and one without fibreglass everywhere. But this will do nicely for now, and it’s all I need to develop films and make prints from my classic camera collection. :)
